TECHNICAL SPECIFICATIONS

Overview

One-piece bead blasted creme e-coated aluminium or sandblasted clear polycarbonate enclosure

Two-piece, 5 axis CNC sculpted clear coated copper, anodised aluminium, sandblasted clear polycarbonate enclosure

Two-piece sand blasted clear coated copper accents and an optional knob

Multi-layered two-piece magnetic stainless steel weight system. Mirror polished outer surface with rose gold pvd over the outer weight piece.

Magnetically regulated gasket array mount with fully isolated self-aligning fr4 „leafspring“ plate

Magnetic assembly with no visible screws and only two inner support screws

M02-65% PCB by ebastler, QMK compatible and fully programmable with VIA, powerful
STM32F411 MCU for future module support

D-02 Daughterboard by ebastler with full ESD protection with additional low
pass filter on power supply with USB -C interface

Moulded silicone feet

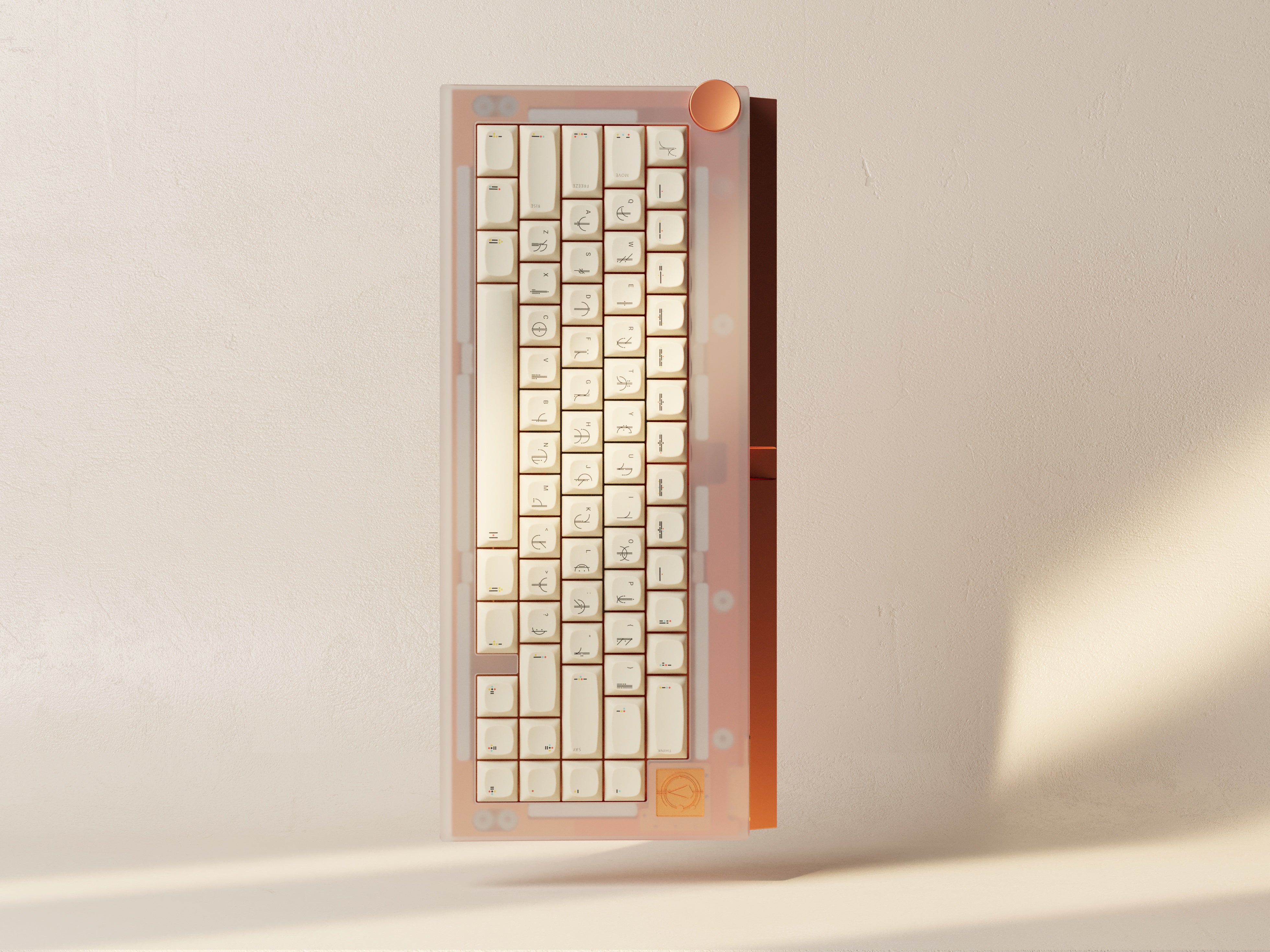

Note: keycaps on renders and photographs are for demonstration only and are not included.

Note: Since every custom colour requires a newly mixed anodisation bath, we can’t guarantee that the renders and photography colours will match the final product 100%. Each edition was colourmatched prior to the pre-order at least once, still a slight variance may still occur.

Quality Control: Our aim is to ensure flawless coating on visible surfaces of the enclosures. Machining marks and small anodisation blemishes on the inside body are not considered a flaw. Our brass and copper pieces are clear or pvd coated to prevent tarnishing over time.

LAYOUTS

Before choosing between solderable and solderless hotswap PCB take a note of the possible layouts. Solderable PCB offers wide arrange of different layouts and ISO support. Hotswap PCB has a fixed layout and is limited to ANSI support only.

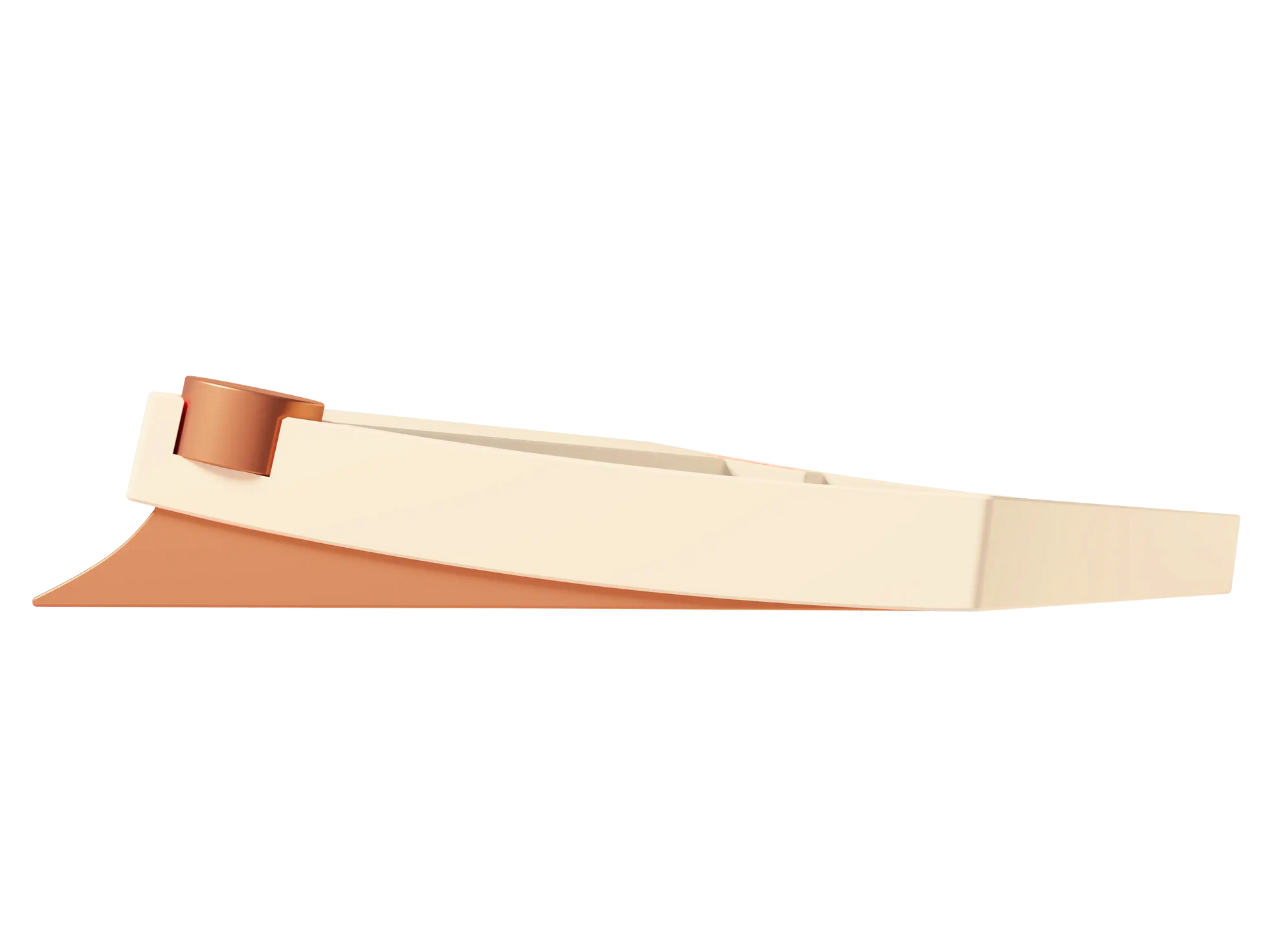

  • Typing angle : 7 degree
  • Front height : 1,75cm

CHOOSE WISELY

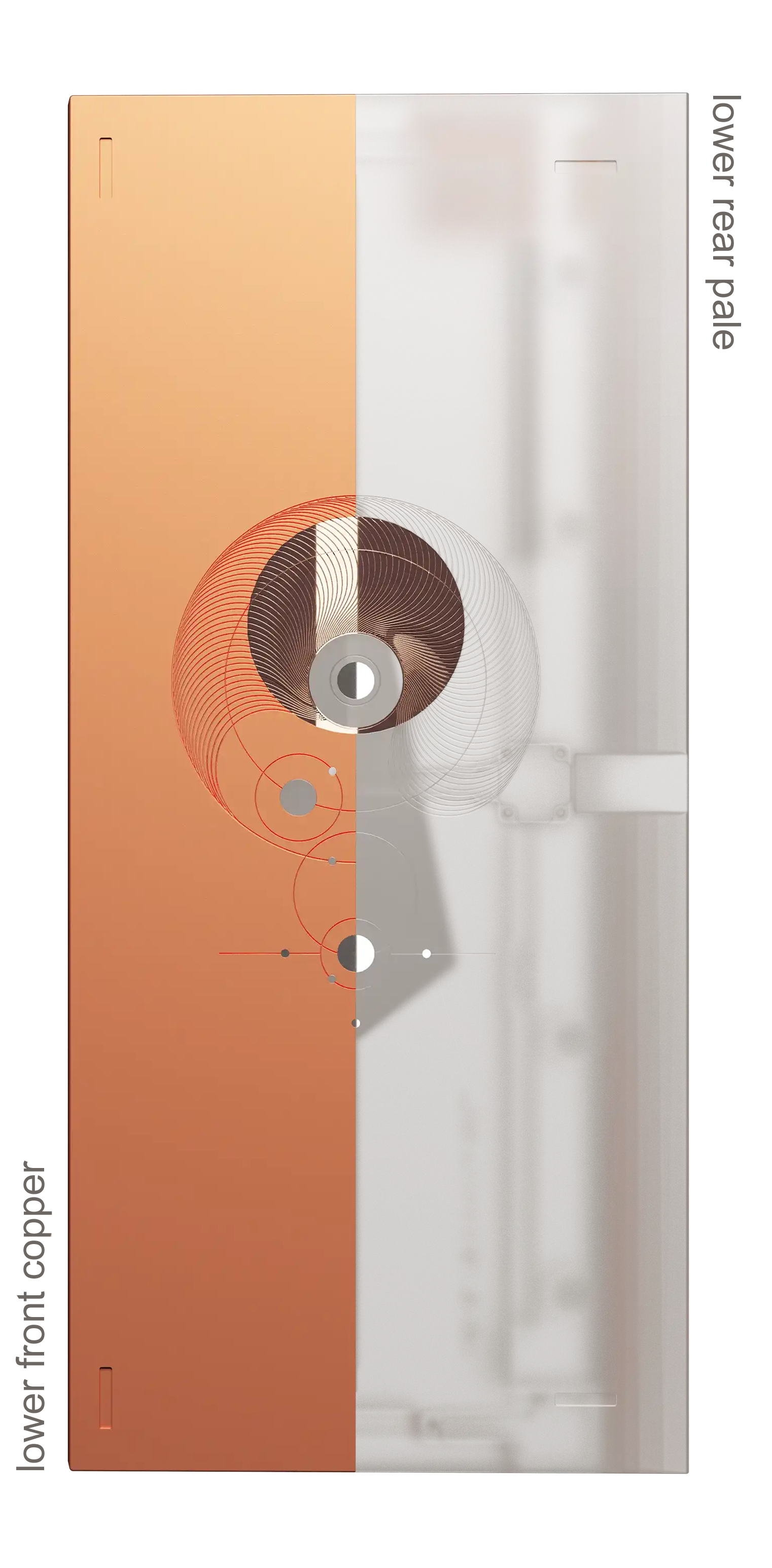

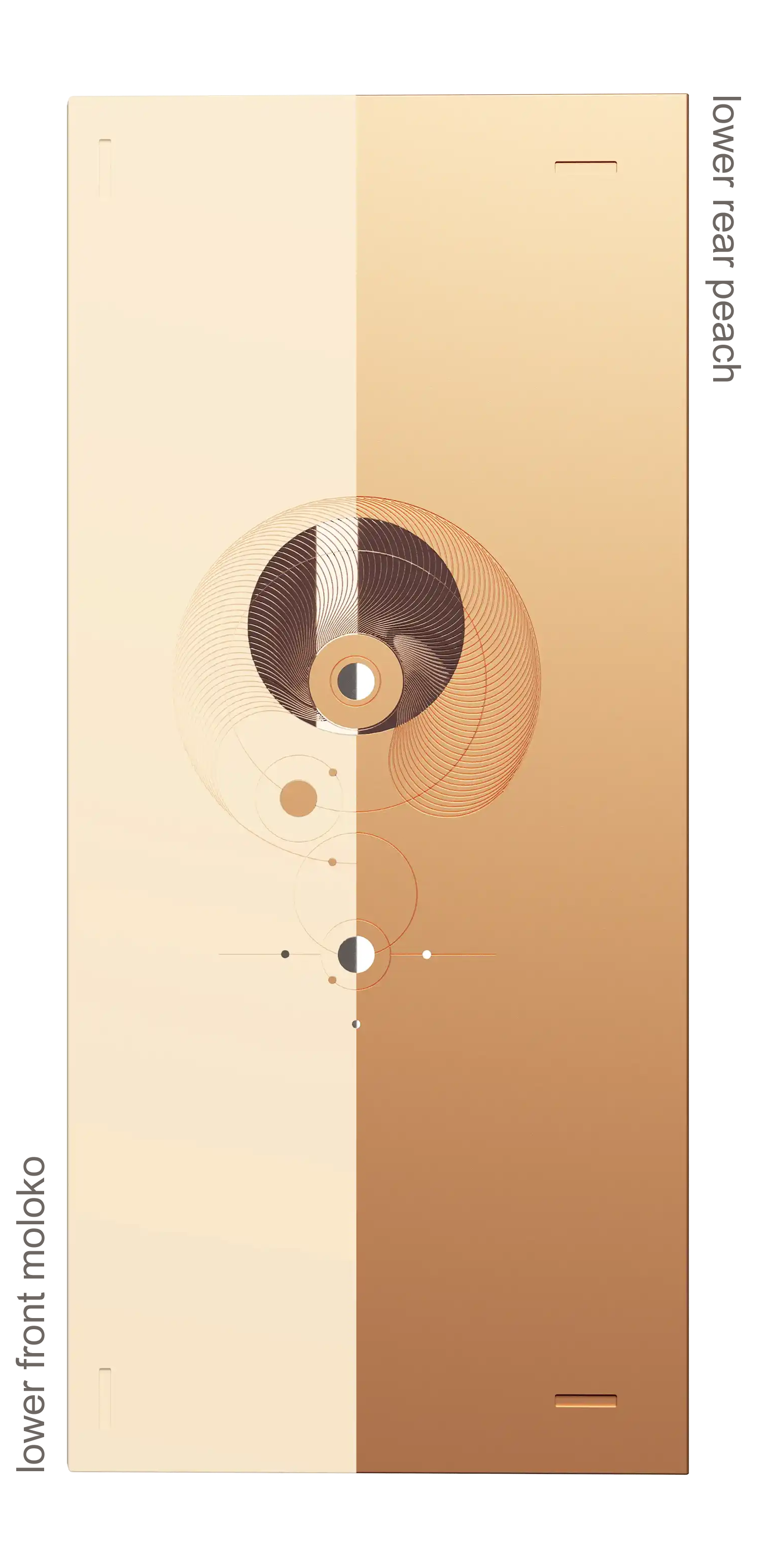

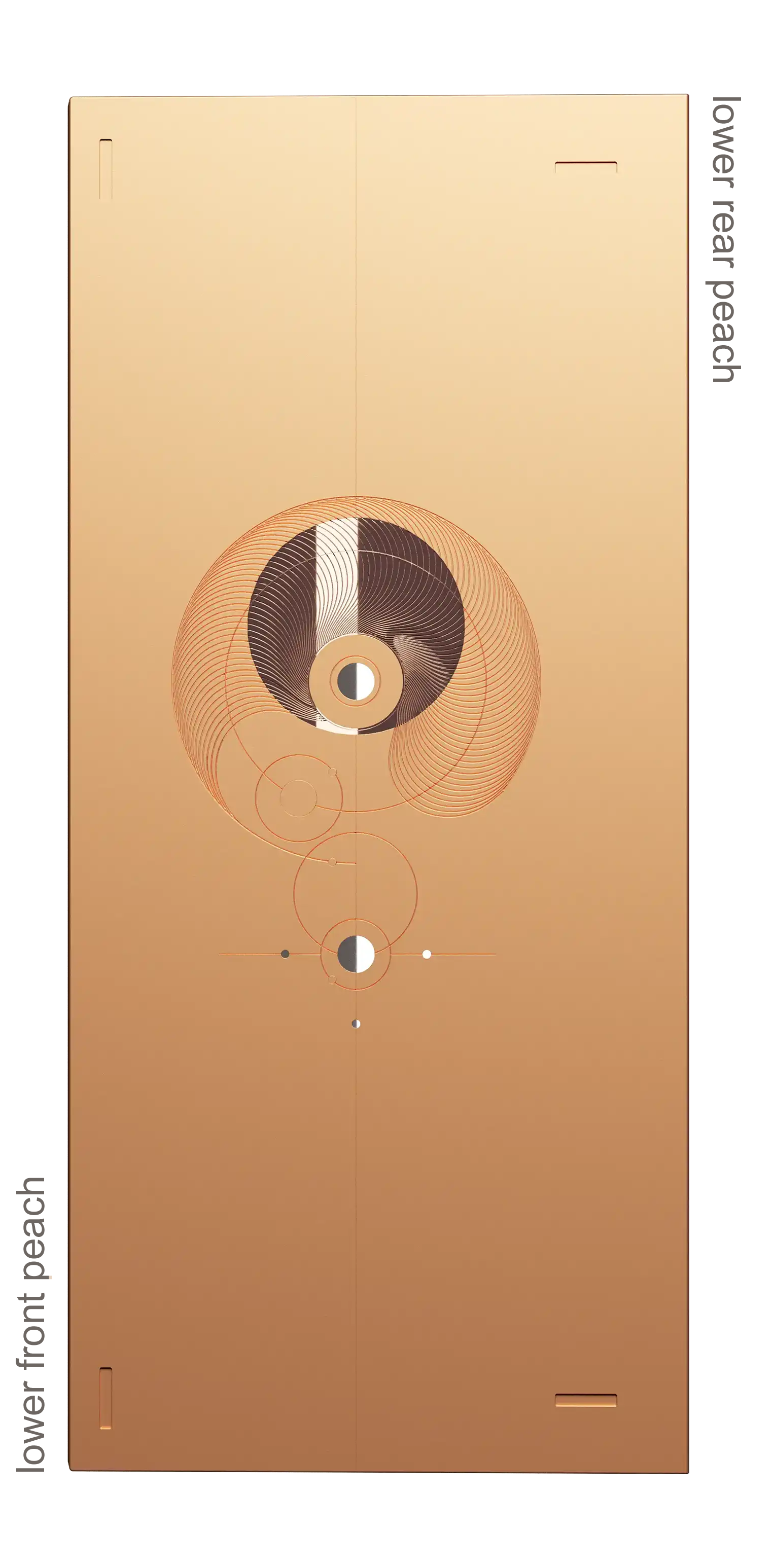

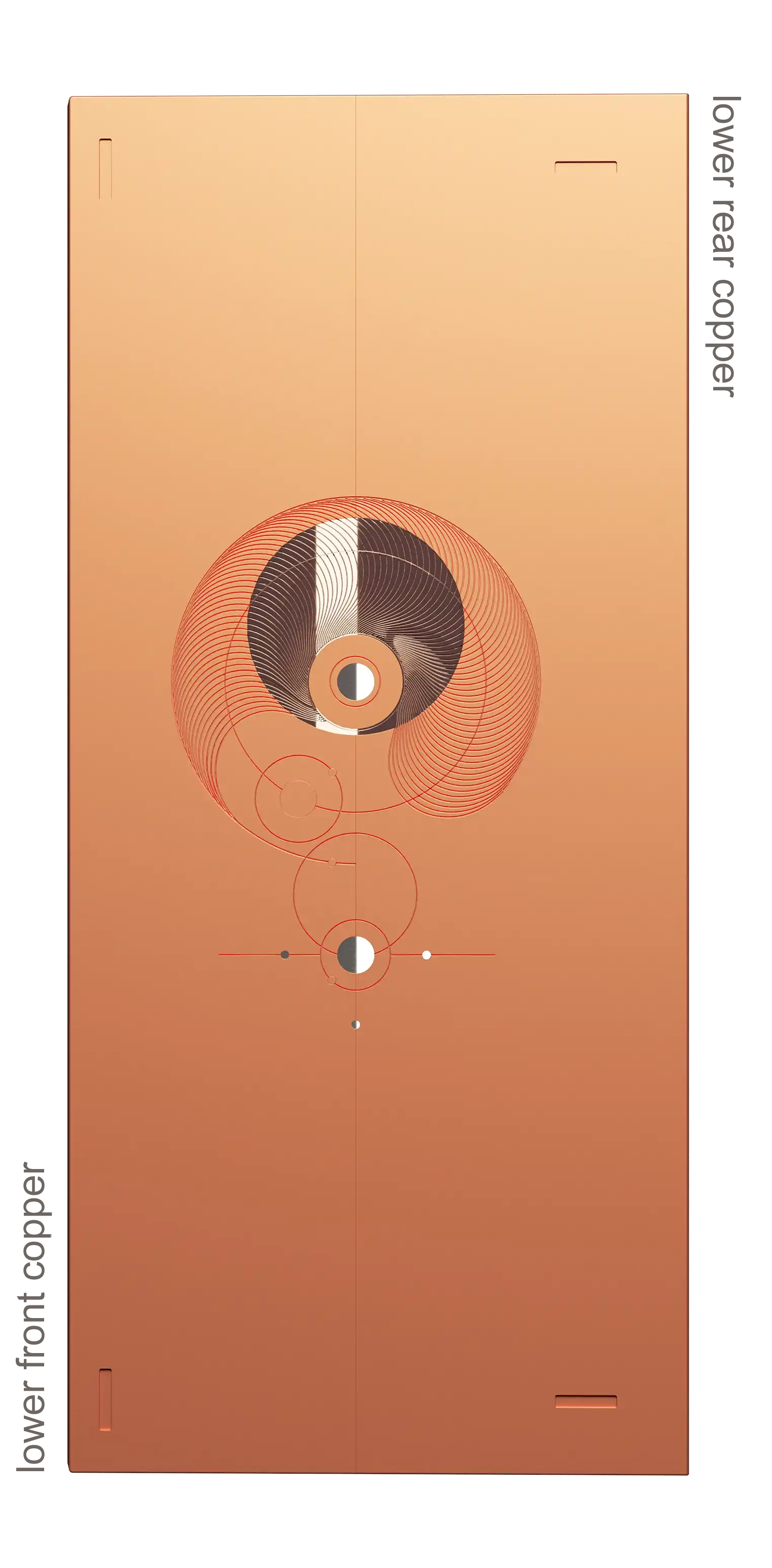

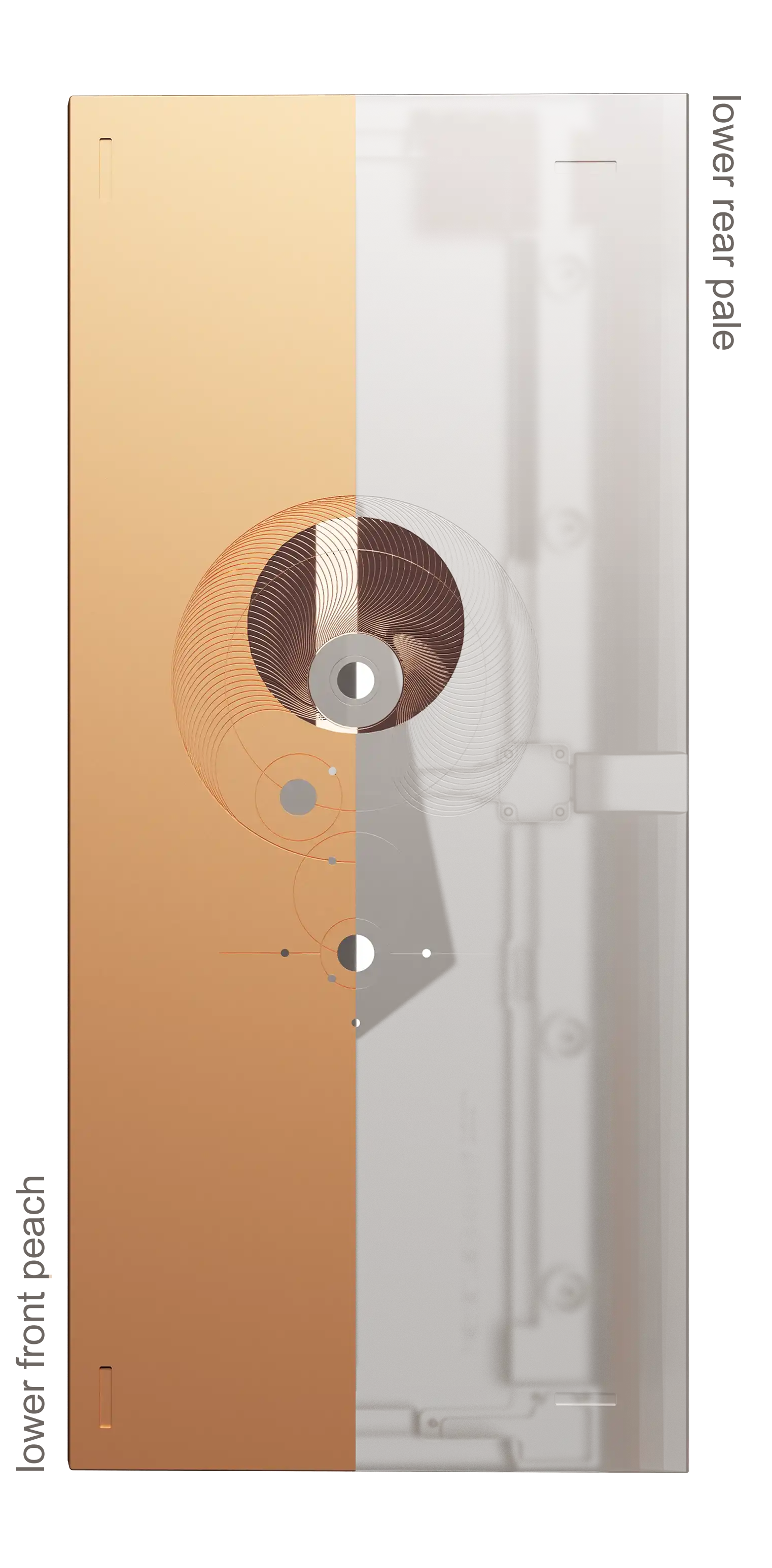

Edition Rear Weight

Unique bottom option

Vertical Gaskets & the Feet

Default Plate Badges & Knob (if selected)
Legacy Rose Gold PVD Copper

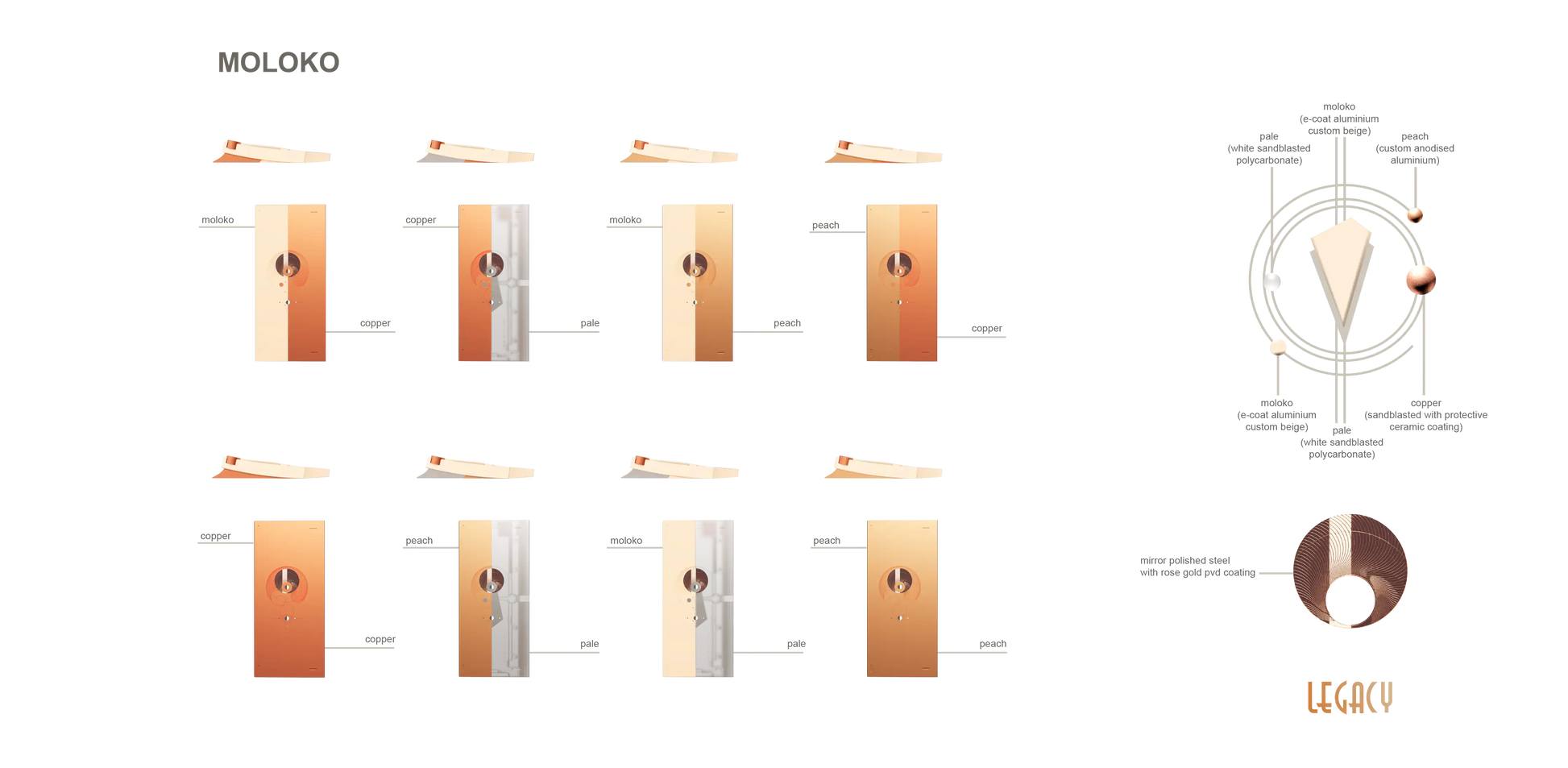

Moloko: beige e-coat aluminium

white FR4  Copper
Shangri-La

Black PVD Copper

Monolith: matte black PVD

black FR4 Copper
Le Jardin Mirror Polished Steel

Solace: Kanagawa / Junip anodised aluminium, depending on the top

black Kanagawa / Junip anodised aluminium, depending on the top Copper

ABOUT LEGACY

ABOUT WERK TRIAD

Werk Triad was developed in parallel with Werk One, not as it's continuation, but as it's counterpoint. Where the One embraced elevation, open spaces and a brighter, airy sound, Triad takes a grounded stance, visually planted, sonically deeper and defined by interlocking geometry.

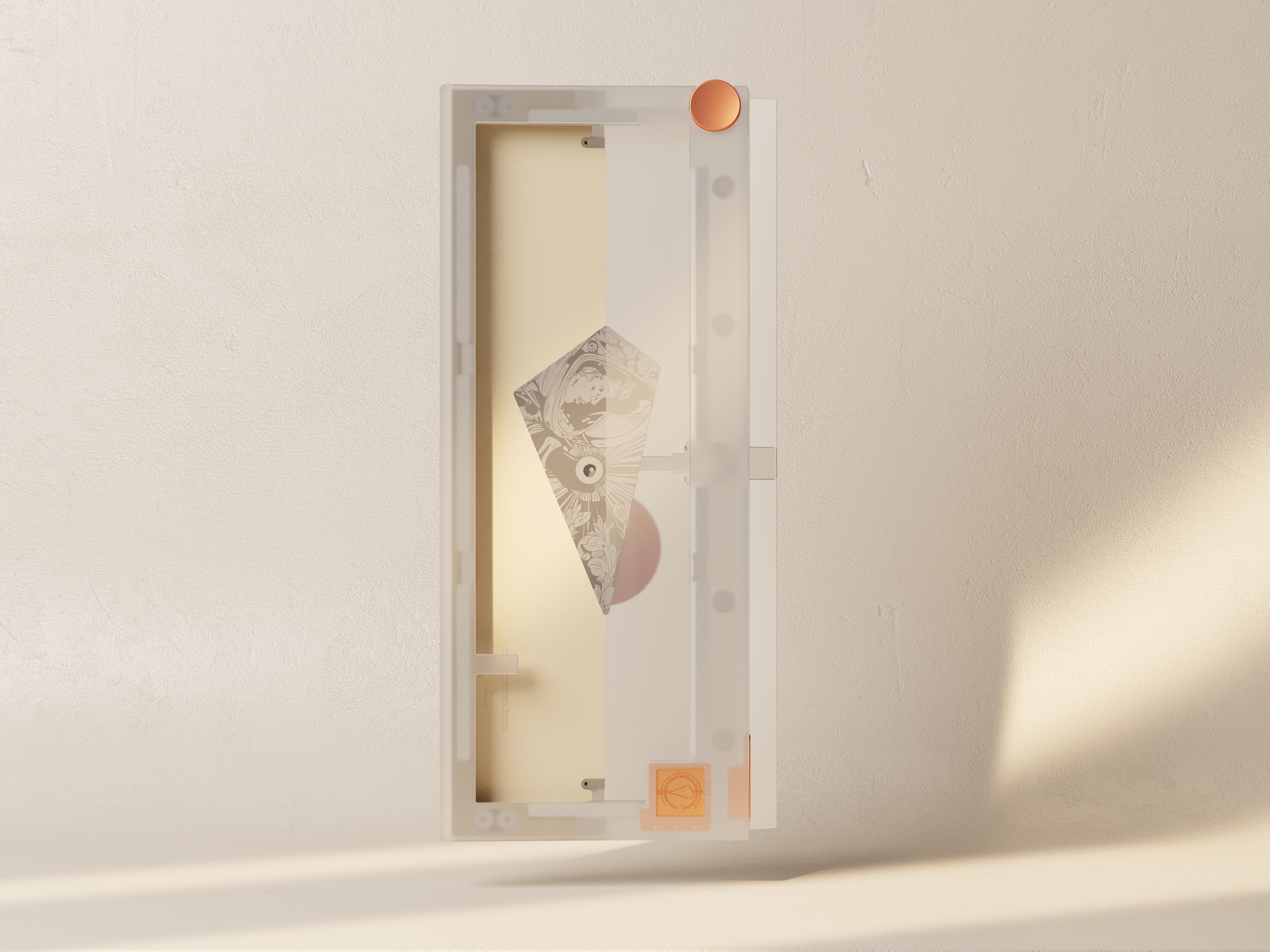

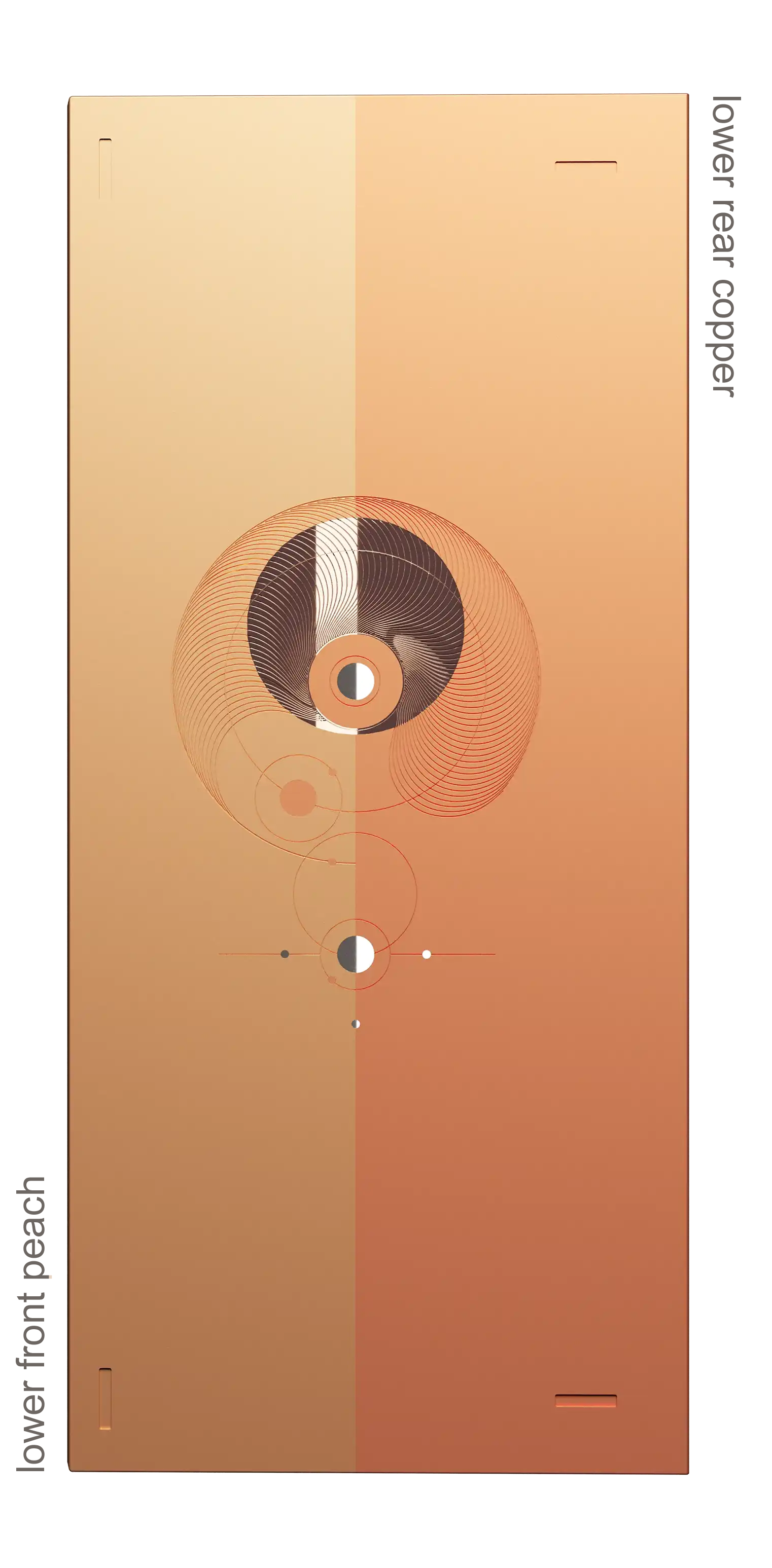

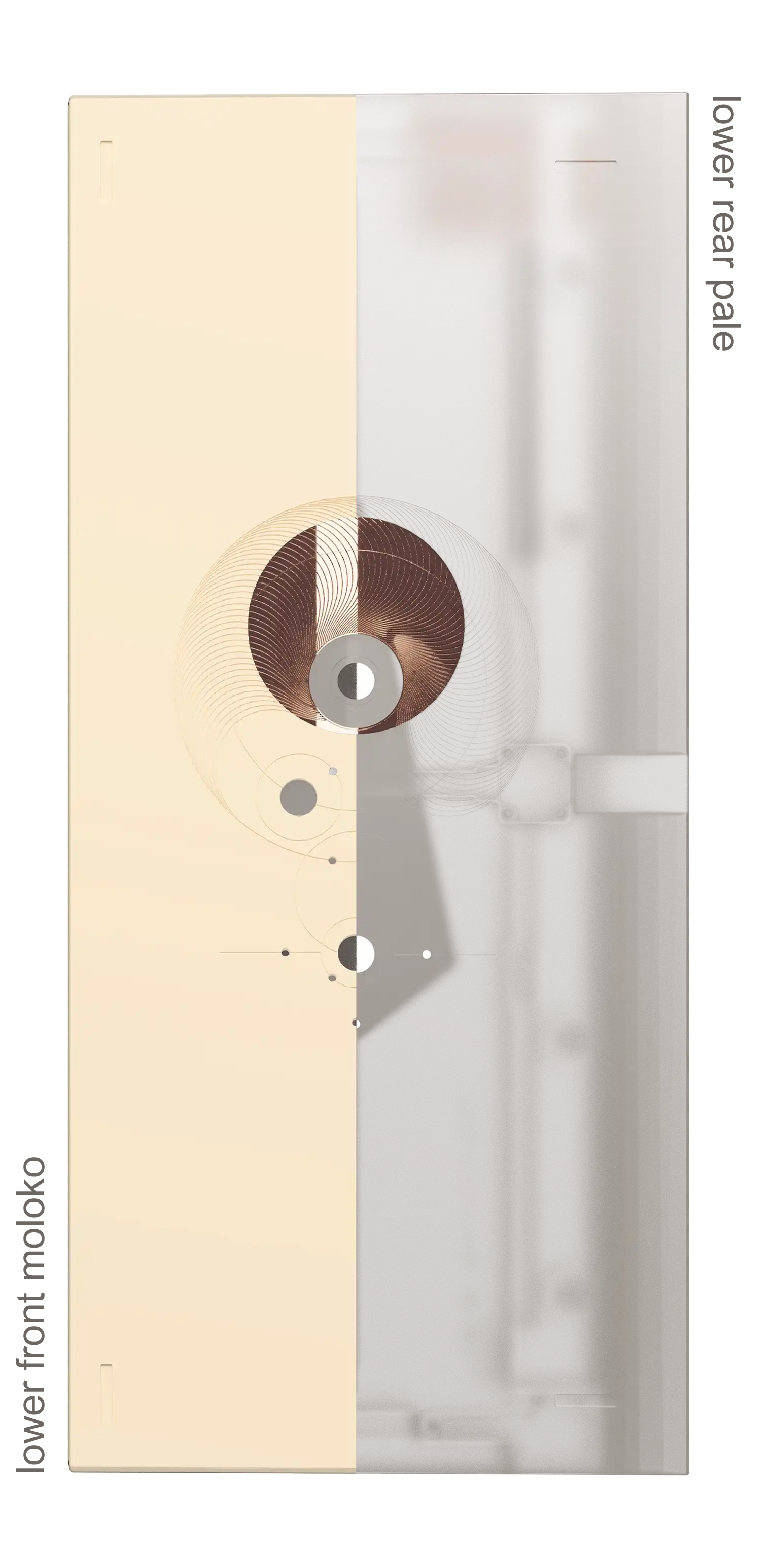

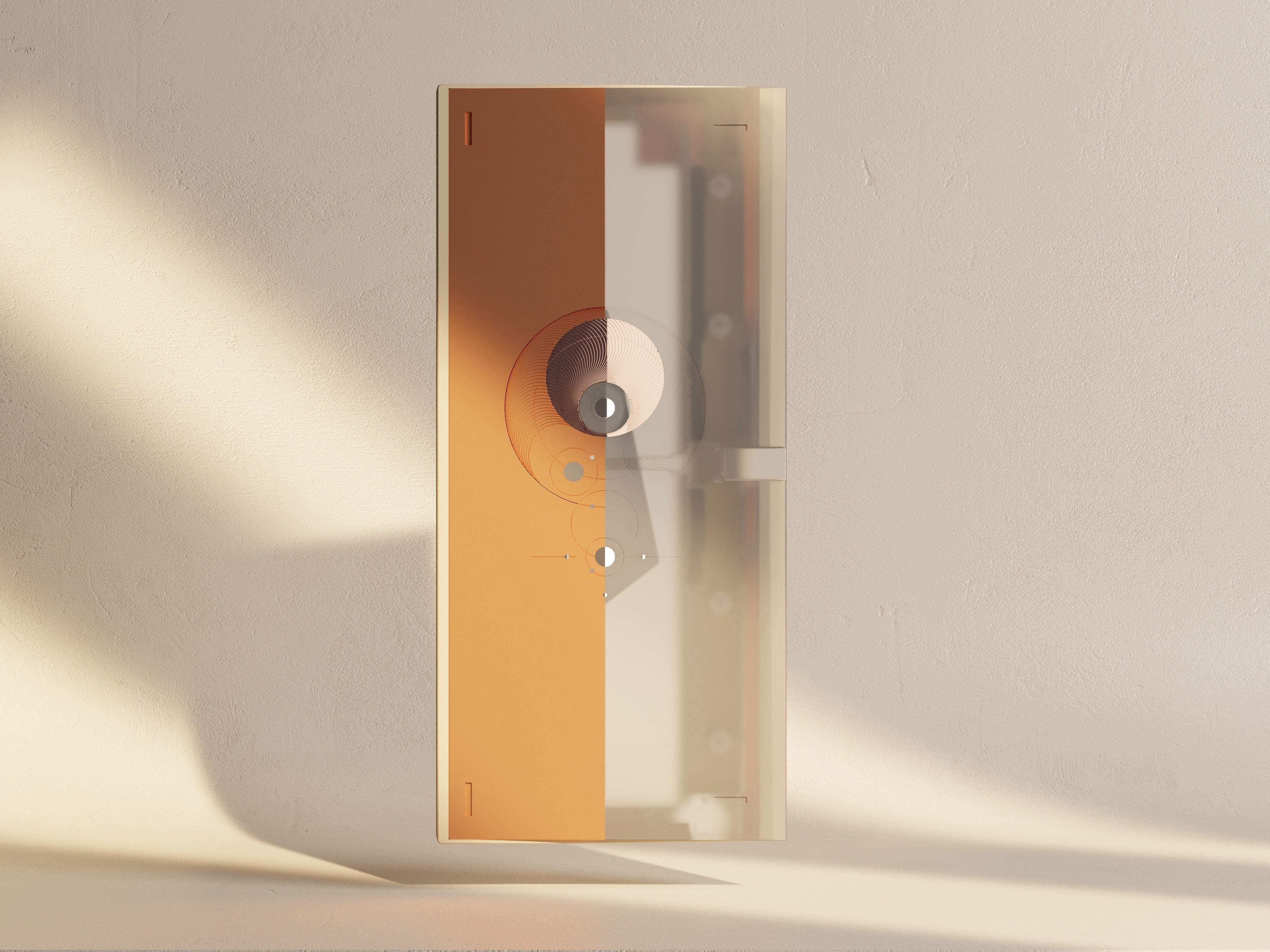

The design draws on constructivist principles, using classic geometric forms that merge into a single composition. It's three-part structure, consisting of two lower sections and a seamless top, is joined by a multilayered weight that shapes uninterrupted artwork across the underside. Four interconnecting components, each with distinct coatings and materials, meet at precise tolerances, secured by a magnetic assembly that allows for tool-less separation.

While it's profile is more anchored, Triad maintains continuous curves across both top and bottom bodies, preserving the core of our design language. The reduced internal volume, combined with a deeper resonance chamber than on the One, produces a denser and more resonant clack without the use of foam. The magnetic assembly also forms part of a hybrid gasket array mounting system, building on the qualities that made Werk One feel and sound so distinct.

In spirit, Triad continues the pursuit of merging the bold optimism of mid-century futurism with an intricate sculptural form language. Where Werk One blended futurism with art deco influence, Triad follows a constructivist path, two opposing points on the same spectrum, each defining the other through contrast.

Architecture of Hybrid Gasket array

VERTICAL GASKETS

Custom molded soft silicone gaskets

helping the plate to self align and minimising

the vibration between top and bottom body

of the build

Symmetrically placed on each side of the “leafspring“ plate, three different gasket types are arranged into a gasket array that surrounds the switch plate vertically and horizontally. This allows us to combine a soft yet not too bouncy typing experience with high vibration absorption. Magnets help to minimize unwanted pressure on the gaskets and contact between metal parts

PORON HORIZONTAL GASKETS

- white poron for brighter sound profile and stiffer feel

- black high return rate poron for darker sound

RESONANCE CHAMBER INNER DESIGN

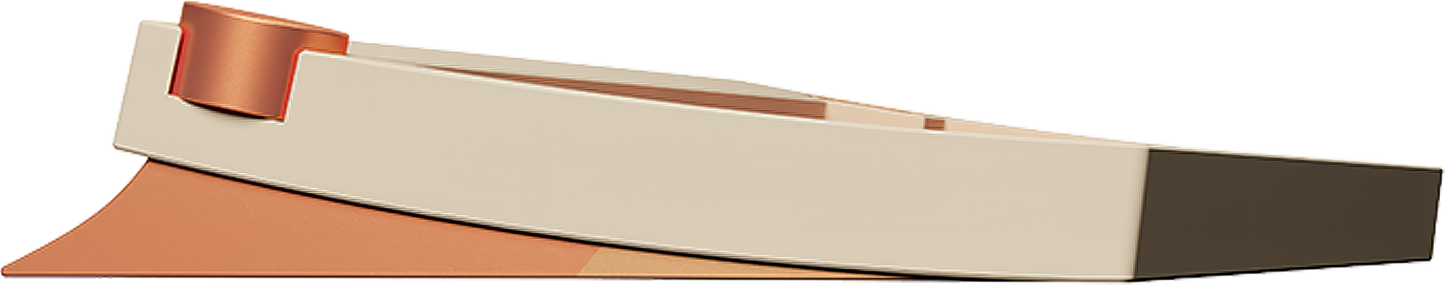

With a front height of just 1.75 cm and a rear profile under 3.5 cm, the Werk Triad is even slimmer than the Werk One - remarkably thin for a custom MX-switch keyboard. To prevent the acoustics from becoming muted or “dead,” we carried over a concept first introduced with the Werk One: the resonance chamber, a principle borrowed from musical instruments.

In the Triad, the inner body shifts from the curved form of the One to a sharp triangular geometry, which allows for an even deeper resonance chamber beneath the PCB. This chamber balances, reflects, and enhances the switch acoustics. The result is a full, vibrant, consistent across rows and distinctly clacky sound signature that requires no reliance on foam or dampening modifications.

Where the Werk One offered a clacky and airy profile, the Werk Triad builds on that character - retaining the liveliness while adding a deeper, darker undertone.

FUTURE SUPPORT AND MODULARITY

Our designs are built to last and to evolve. From the start, the Werk One was engineered with future modularity in mind, and the Werk Triad continues this philosophy. The default badge module can be swapped for various options, opening the door to new features and personalization.

The first of these is an OLED module, designed to be interchangeable across all upcoming werk.technica keyboards. Both the M02-65% PCB and the Werk Triad top enclosure will support these new modules, which are currently in prototyping and software development stage.

To encourage experimentation, the default badge module is open source, giving anyone the freedom to design their own modules and stages, adapting the top body to their own aesthetic and functional preferences.

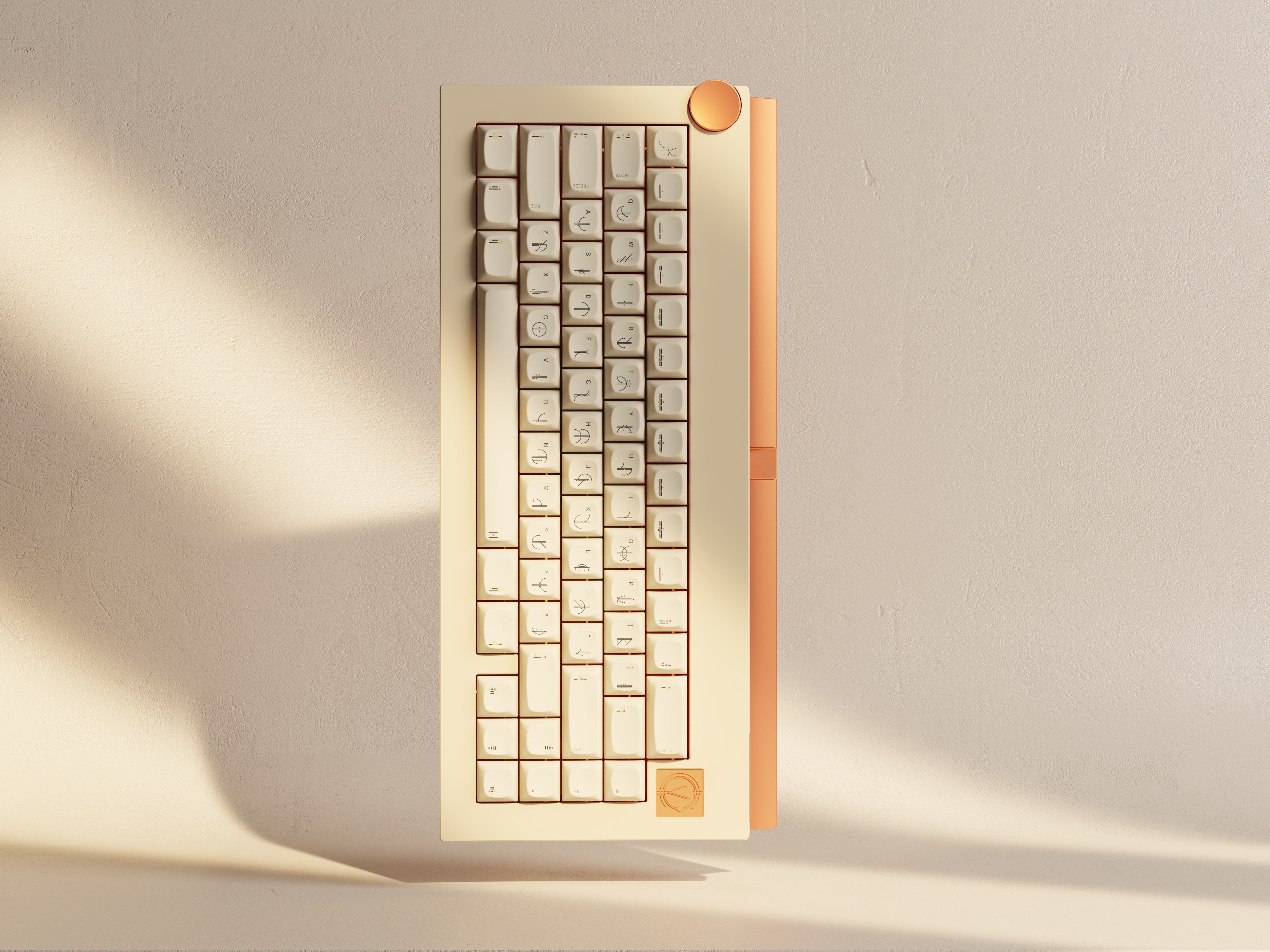

Legacy Werk Triad Kit includes:

• Packaging: custom bix tailored for a rather fun unboxing experience

• One-piece bead blasted creme e-coated aluminium or white polycarbonate enclosure

• Two-piece, 5 axis CNC bottom body enclosure with materials of your choice

• Two-piece multilayer steel weight, with mirror polish on outer parts and rose gold PVD on the circular outer part

• Two-piece sand blasted clear coated copper accents with serialized rear badge

• M02-65% PCB and D-02 Daughterboard by ebastler

• FR4 „leafspring“ plate

• Set of molded silicone vertical and horizontal poron gaskets

• Set of molded silicone feet

• Set of torx screws

• Set of removable magnets

• personalized QC authenticity certificate

Technical Specifications

  • 65% Layout design
  • Front Height: 1,75cm
  • Rear Height: 3,47cm
  • Typing Angle: 7°
  • Mounting Style: "Leafspring" plate mounted on a magnetic gasket array
  • PCB: QMK and VIA compatible, powerful STM32F411 MCU, modularity support

As a thank you to our community for your patience and support, each Werk Triad kit includes a randomly chosen little art-print. The artworks are the result of a collaboration between Zaum and the talented artist Dennis Kreker during the lengthy Werk Triad development process.
